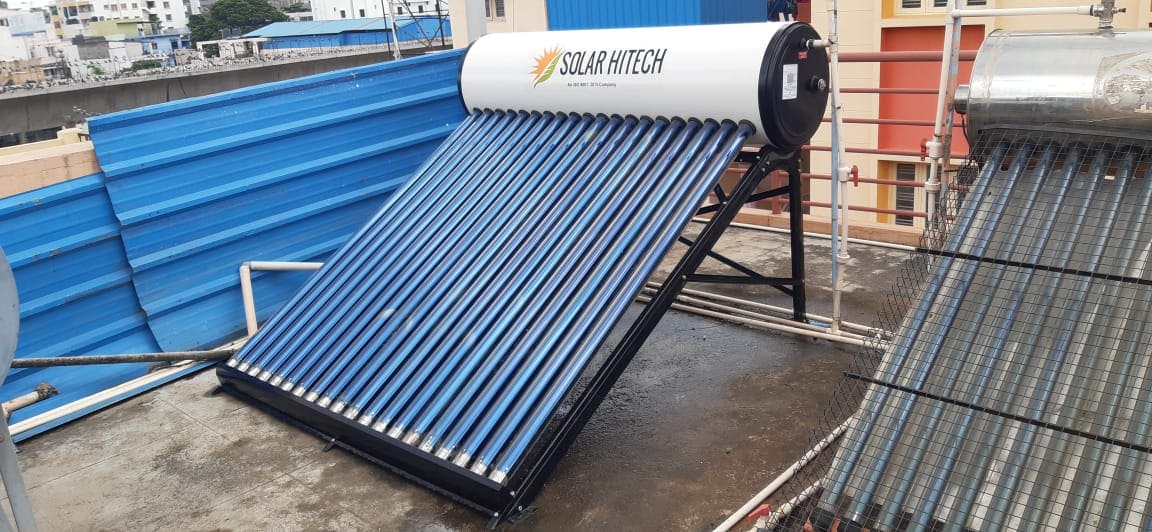

Radian Range - Capacity 200 LPD
| Manufacturer | Solar Hitech Solutions |
|---|---|
| Model Name | Radian Range - Capacity 200 LPD |
| Year of Launch | 2005 |
| Product Description | Our ETC systems consist of tubes with borosilicate glass conforming to ISO 3585 specifications. The tube and system specifications are as follows: Absorber coating: Outer side of inner tube coated with three target Cu/SS/AIN selective coating by magnetron sputtering vacuum slashing process. Absorptance>93%, Emittance <6% (@85 degrees C). Thickness can be customised to customer requirements - TIG welded/Seam welded/CO2 welded. Special grade directly moulded PUF 50mm insulation and MS powder coated support structures with optional 2/3/5kW backup heater if needed. |
Technical Specifications
| Capacity | 200 LPD |
|---|---|
| Number of Evacuated Tubes | 20 |
| Size of Tubes | 58mm x 1800 mm |
| Inner Tube Diameter | 47mm ± 0.7mm |
| Outer Tube Diameter | 58mm ± 0.7mm |
| Dimensions | 2m x 1.8m |
| Inner Tank Material | SS304/GI/Glass Lined |
| Type of ETC | Non-pressurised |
| Operating Pressure | N/A |
| No. of Users Suitable for | 4-5 |
