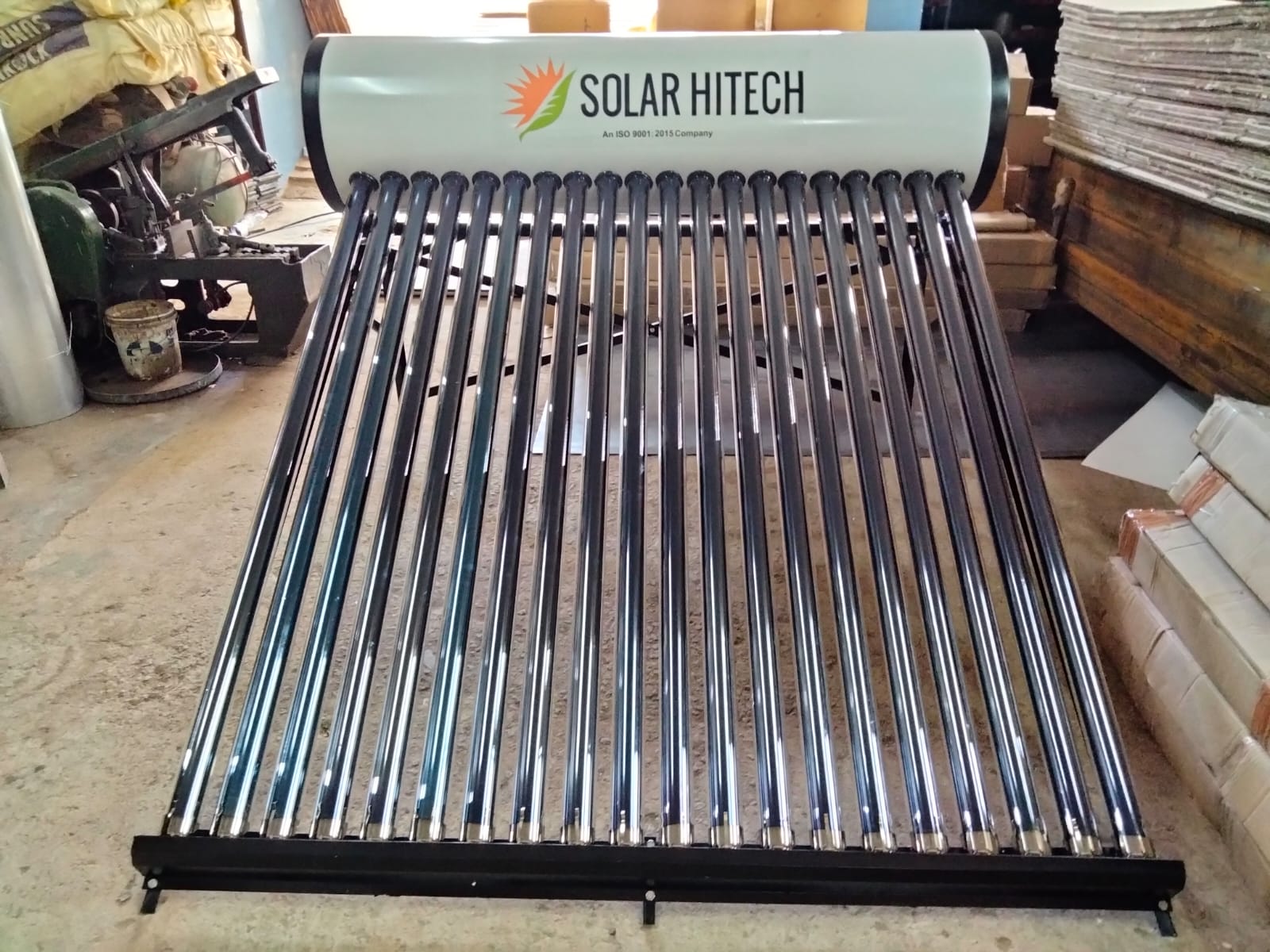

Arc Range - Capacity 300 LPD
Manufacturer |
Solar Hitech Solutions
|
Model Name |
Arc Range - Capacity 300 LPD |
Year of Launch |
2011 |
Product Description |
Our ETC systems consist of tubes with borosilicate glass conforming to ISO 3585 specifications. The tube and system specifications are as follows: Absorber coating: Outer side of inner tube coated with three target Cu/SS/AIN selective coating by magnetron sputtering vacuum slashing process. Absorptance>93%, Emittance <6% (@85 degrees C). Thickness can be customised to customer requirements - TIG welded/Seam welded/CO2 welded. Special grade directly moulded PUF 50mm insulation and MS powder coated support structures with optional 2/3/5kW backup heater if needed.
|
Technical Specifications
Capacity |
300 LPD |
Number of Evacuated Tubes |
24 |
Size of Tubes |
58mm x 2100 mm |
Inner Tube Diameter |
47mm ± 0.7mm |
Outer Tube Diameter |
58mm ± 0.7mm |
Dimensions |
2m x 2.8m |
Inner Tank Material |
SS304/GI/Glass Lined |
Type of ETC |
Non-pressurised |
Operating Pressure |
N/A |
No. of Users Suitable for |
5-6 |
